Cheatsheet›Binary Search
CORE PATTERNVery High Frequency

Binary Search

Repeatedly halve the search space by comparing the midpoint against a monotonic condition. Every iteration eliminates half the remaining candidates, giving O(log N) time even for large inputs.

TimeO(log N)
SpaceO(1)
DifficultyEasy to Hard

Key Insight

Halve the problem every step — find the answer in O(log N).

Flip ⟲
Binary Searchtarget = 13
1
3
5
7
9
11mid
13
15
17
19
23
27
lo
hi
mid11
Actionlo=mid+1

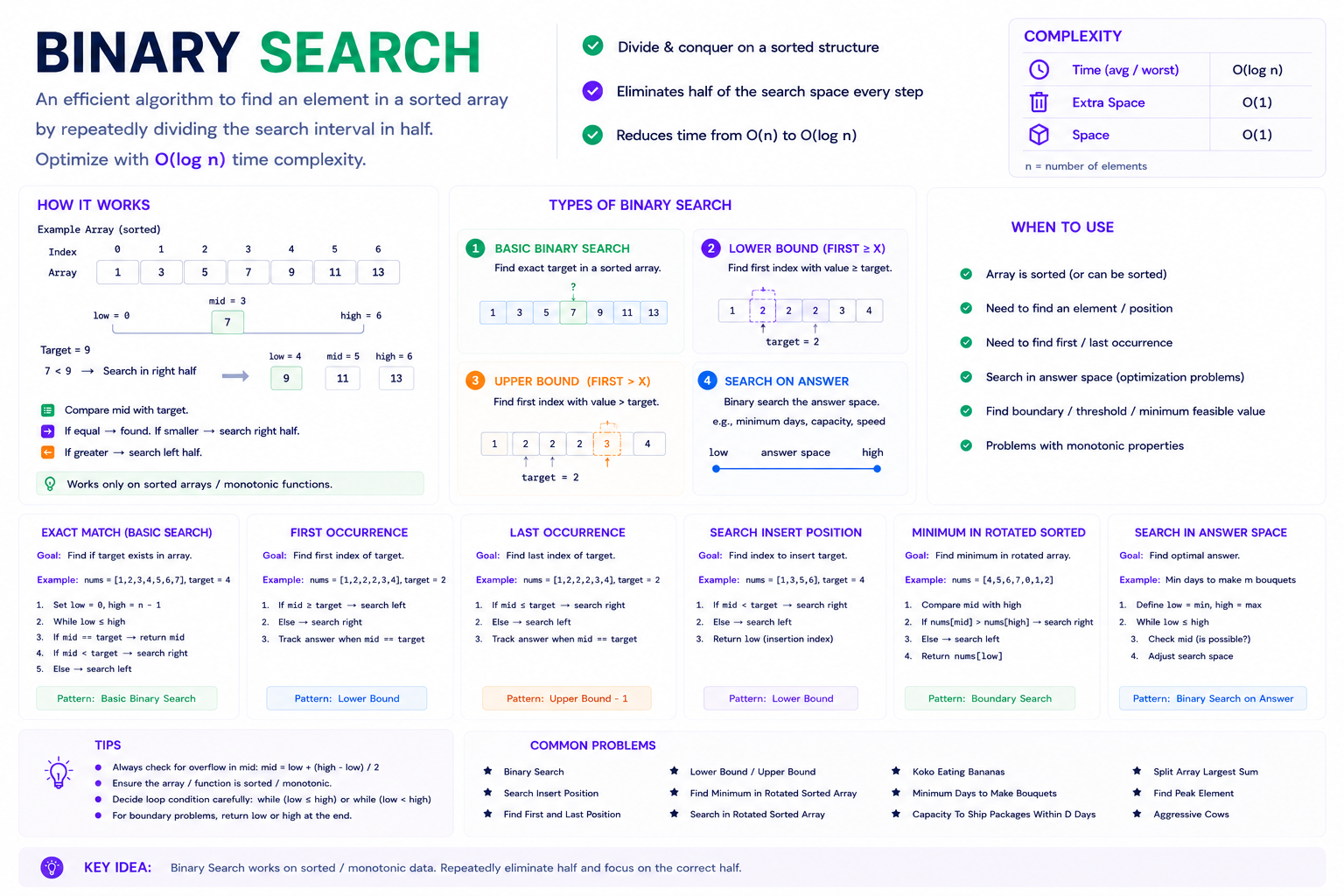

Binary Search Cheatsheet
FLIP SIDEBinary Search
Tap to flip back ⟲

RECOGNITION SIGNALS (WHEN TO USE THIS PATTERN)

✓Sorted array, rotated array, or matrix
✓Find target / first / last occurrence in sorted data
✓Minimize the maximum or maximize the minimum (feasibility check)
✓Answer lies in a monotone integer range [lo, hi]
✓Square root, nth root, or real-valued binary search
✓Bisect on time, capacity, or cost with a greedy validator
1

Types of Problems (Subpatterns)

Each subpattern solves a specific type of problem. Click on a card to view its template.

✓ SELECTED

Classic Binary Search

Exact match on a sorted array — return the index or -1.

  • Binary Search
  • Search Insert Position
  • Guess Number Higher or Lower
5 problems

Find Boundary (Left / Right Edge)

Locate the first or last index where a condition flips from false to true.

  • Find First and Last Position of Element in Sorted Array
  • First Bad Version
  • Find Minimum in Rotated Sorted Array
5 problems

Search in Rotated / Modified Array

Determine which half is sorted, then decide which side to discard.

  • Search in Rotated Sorted Array
  • Search in Rotated Sorted Array II
  • Find Minimum in Rotated Sorted Array
5 problems

Binary Search on Answer

The answer lies in a monotone range — binary search on the value, validate with a greedy check.

  • Koko Eating Bananas
  • Capacity To Ship Packages Within D Days
  • Minimum Number of Days to Make m Bouquets
5 problems

Binary Search on 2D / Matrix

Map a 2D matrix to a virtual 1D sorted array and run classic binary search.

  • Search a 2D Matrix
  • Search a 2D Matrix II
  • Kth Smallest Element in a Sorted Matrix
5 problems

Implicit / Real-valued Binary Search

Binary search on a continuous or implicit domain — no explicit array needed.

  • Median of Two Sorted Arrays
  • Find K-th Smallest Pair Distance
  • Nth Magical Number
5 problems
2

Template / Approach

Template for: Classic Binary Search

Approach

1

Set Boundaries

Initialise lo = 0 and hi = n - 1 to cover the full sorted range.

2

Compute Mid

mid = lo + (hi - lo) / 2 avoids integer overflow compared to (lo + hi) / 2.

3

Compare and Halve

If arr[mid] == target return mid. If arr[mid] < target set lo = mid + 1, else hi = mid - 1.

4

Return Result

Loop exits when lo > hi — target not found, return -1 (or lo for insertion point).

Template

</>Common Template
💡Standard exact-match binary search. Use this whenever you need to find a specific value in a sorted collection. Adjust the return value to get insertion index (return lo) instead of -1 for not-found.
🔑
Key Idea:Every iteration eliminates exactly half the remaining search space. With N elements you need at most ⌈log₂N⌉ + 1 comparisons — roughly 30 iterations for a billion elements.
1// Classic binary search — sorted array, exact match
2int binarySearch(vector<int>& arr, int target)
3{
4    int lo = 0;
5    int hi = (int)arr.size() - 1;
6
7    while (lo <= hi)
8    {
9        int mid = lo + (hi - lo) / 2;
10
11        if (arr[mid] == target)
12        {
13            return mid; // found
14        }
15        else if (arr[mid] < target)
16        {
17            lo = mid + 1; // search right half
18        }
19        else
20        {
21            hi = mid - 1; // search left half
22        }
23    }
24
25    return -1; // not found (return lo for insertion index)
26}
Easy

Binary Search

LeetCode #704

Easy

Search Insert Position

LeetCode #35

Easy

Sqrt(x)

LeetCode #69

Easy

Guess Number Higher or Lower

LeetCode #374

Medium

Find First and Last Position of Element in Sorted Array

LeetCode #34

Easy

First Bad Version

LeetCode #278

Medium

Peak Index in a Mountain Array

LeetCode #852

Medium

Find Minimum in Rotated Sorted Array

LeetCode #153

Medium

Search in Rotated Sorted Array

LeetCode #33

Medium

Search in Rotated Sorted Array II

LeetCode #81

Hard

Find Minimum in Rotated Sorted Array II

LeetCode #154

Medium

Find Peak Element

LeetCode #162

Medium

Koko Eating Bananas

LeetCode #875

Medium

Capacity To Ship Packages Within D Days

LeetCode #1011

Medium

Minimum Number of Days to Make m Bouquets

LeetCode #1482

Hard

Split Array Largest Sum

LeetCode #410

Medium

Magnetic Force Between Two Balls

LeetCode #1552

Medium

Search a 2D Matrix

LeetCode #74

Medium

Search a 2D Matrix II

LeetCode #240

Medium

Kth Smallest Element in a Sorted Matrix

LeetCode #378

Easy

Count Negative Numbers in Sorted Matrix

LeetCode #1351

Hard

Median of Two Sorted Arrays

LeetCode #4

Hard

Find K-th Smallest Pair Distance

LeetCode #719

Hard

Swim in Rising Water

LeetCode #778

Hard

Nth Magical Number

LeetCode #878
